Tamiya Fighter Nxgen DT-04 RC Racer - 1/10 Scale

Tamiya Fighter Nxgen 1/10 Scale R/C Car Kit (Model 58741)

Experience the Next Generation of R/C Buggies

Introducing the Tamiya Fighter Nxgen 1/10 scale R/C car kit, the latest evolution in the acclaimed DT series. Perfect for R/C enthusiasts, this kit offers both ease of assembly and exhilarating performance.

• Model Kit Number: 58741

• Series: All Electric R/C Car Series No.741

• Scale: 1/10

DT-04 Chassis: Lively Rear-Wheel Drive Performance

The DT-04 chassis, inspired by full-size single-seater buggies, features separate body panels screw-fixed to its frame. This rear-wheel drive buggy chassis is designed for dynamic performance with an inline battery pack position and a rear-mounted motor for ample rear-wheel traction. The sealed gearbox with a built-in gear differential ensures smooth cornering and protection from dust and dirt.

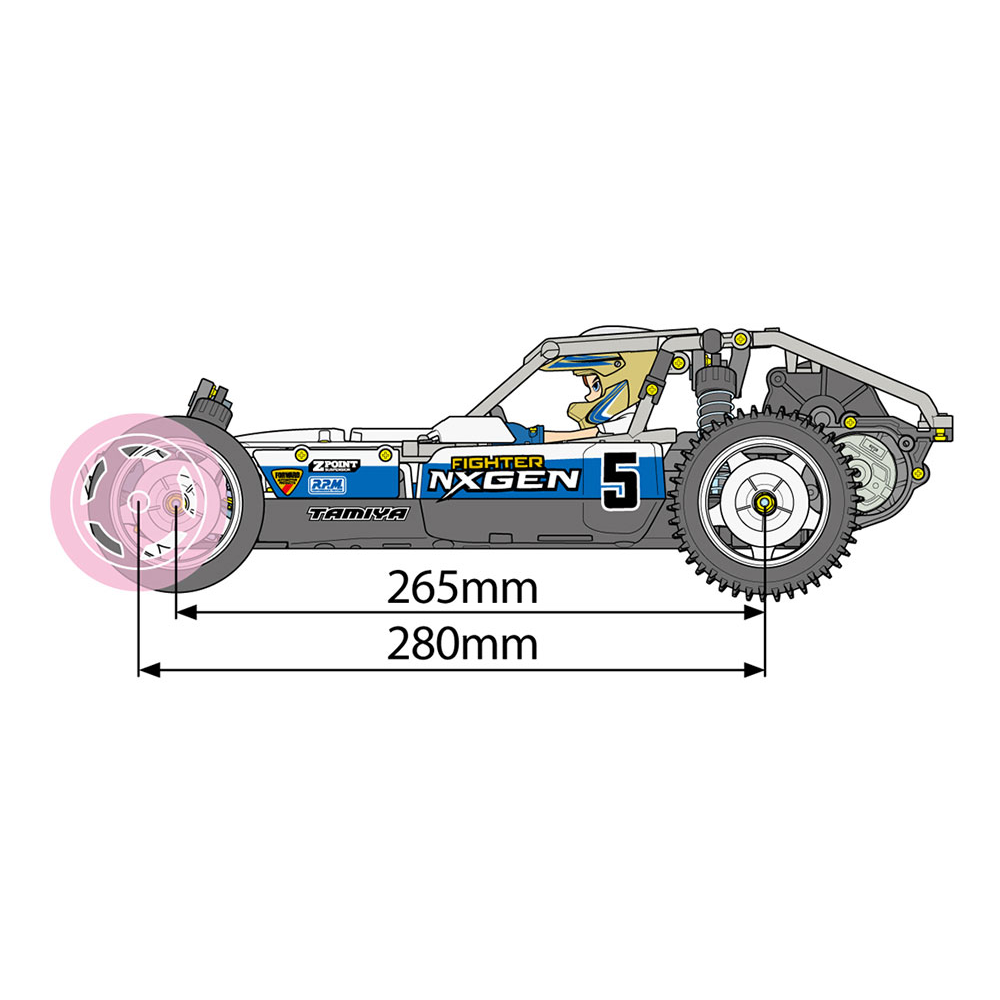

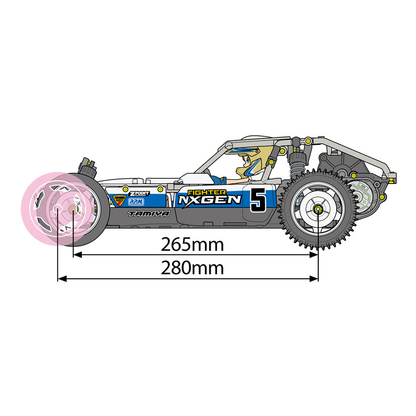

• Selectable Wheelbase: Choose between 265mm for better handling or 280mm for enhanced stability.

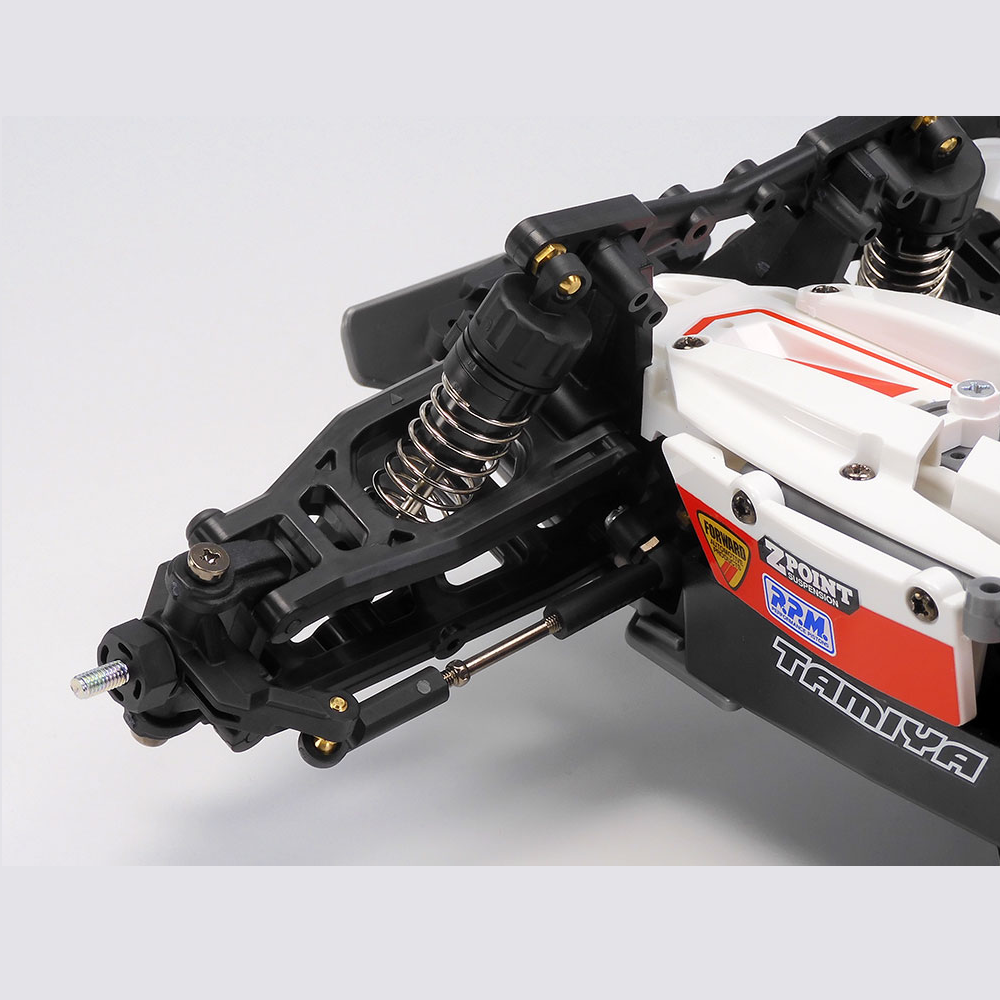

• Suspension: 4-wheel independent double wishbone suspension with long arms and CVA oil dampers.

• Front Skid Angle: 22.5 degrees for improved controllability and performance.

• Steering: 3-piece steering tie-rod for precise steering control.

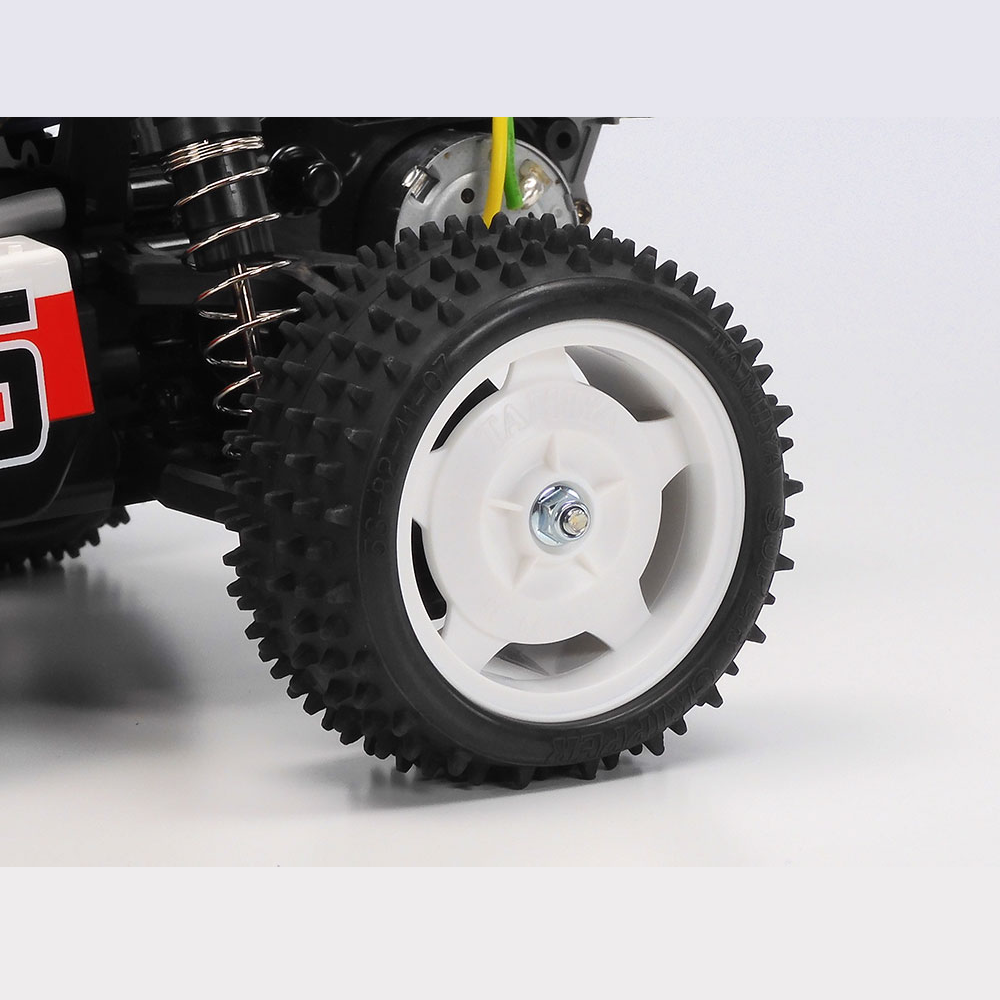

• Tires: Ribbed front tires and grippy square spike rear tires.

Specifications:

• Length: 395mm (with 265mm wheelbase)

• Width: 245mm

• Height: 125mm

• Wheelbase: 265mm/280mm

• Tread (front/rear): 217mm/204mm

• Tire Width/Diameter: 27/80mm (front), 41/86mm (rear)

• Frame: Monocoque

• Drive Type: Rear-wheel drive

• Differential: 3-bevel

• Motor: Type 540

• Gear Ratio: 9.28:1

• ESC: Included for export

Includes:

• Torque Tuned Motor

• Driver Figure

Separately Required Items:

• 2-Channel R/C Unit with ESC

• Battery Pack & Charger

• R6/AA/UM3 Batteries for Transmitter

This R/C model assembly kit is inspired by full-size single-seater racing buggies popular in America. Its 2WD rear-wheel drive chassis features a lightweight, durable bathtub frame with an inline battery pack in the centre and rear-mounted dampers. Enjoy the lively performance and ease of assembly with the Tamiya Fighter Nxgen, featuring ribbed front tires and grippy square spike rear tires.

Models supplied unassembled & unpainted.
